Headphone Demonstrator With Customer Audio Source

Model Name: Model: ADMP-10H | ADMP-07H

Immersive Headphone Demo Station for In-Store Audio Comparison, Built-in Audio/Video Playback and Auto-Sensing Input

•Compact system with dedicated high-fidelity amplifier for each headphone output

Auto-sensing AUX input lets customers instantly test with their own devices

•Supports WAV, and MP3 for high bite-rate audio playback

Features

Elevate the headphone shopping experience

This interactive headphone demo station features a built-in player with SD card support, allowing retailers to showcase multiple headphones or audio devices using high-quality, preloaded music or promotional video content.

User flowing chart:headphone demo audio and video


Key features:

Multiple headphone outputs (x6) with corresponding product selection buttons

Auto-sensing AUX input for customers to connect and test with their own devices (Bluetooth customer line-in available )

•Clear on-screen messaging to guide users when a personal device is detected ( this on-screen messaging image can be customized ).

Volume control knobs (up, down, mute) for easy audio adjustment ( Rotary knob form is available ).

•Designed for use in electronics retail, showrooms, or trade displays

Perfect for allowing customers to compare sound quality, explore brand features, and engage directly with audio gear in-store.


Dedicated Amplifier

Sound quality is the first consideration in demonstrating high-end headphones, and our A10H offers a dedicated premium amplifier for each headphone output.

Customers’ Personal Music Input

Customers’ buying intention would be improved significantly when they feel a connection to the product. Thus using customers’ music to demo headphones would be prime consideration of sellers. Our A10H headphone demonstrator makes it no longer a problem. The only thing customers have to do is pluging-in a 3.5mm audio cable into their audio device (MP3, iPad, Smart Phone etc) and the system would do the rest  ( In Q4,2024, we also released Bluetooth wireless connection for customer device line-in ).

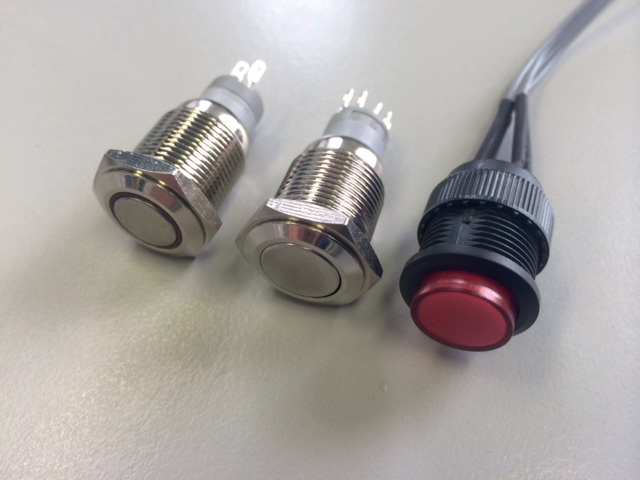

Push Buttons Control


Support up to 6 retail-hardened selector push buttons for music switching and volume control. These durable buttons are user-friendly with dynamical flashing or breathing LED illumination (white, blue, yellow light color to indicate different statuses of demonstration.
Push button for headphone selection

Text file -based custom configuration

Each headphone demonstration application may require a different content plan and user flow logic for the playlist, our A10H offers an easy-to-customize set of play control syntax. For retail integrators who have basic idea of the demonstration user experience, they can make their content plan and play control operator by editing the numbers in the script via text pad.


Multiple Form Factors To Accommodate Different Situations

Our headphone demonstration player is available in metallic set-top-box if no LCD screen is required, also it can be open frame media display with or without touchscreen. For total customization, it is available in circuit board only. Right now, our power extension board can be combined with headphone extension board to function in set-top-box only. Apps control to replace push buttons could be customized against volume order.

Market & Applications:

* Retail Showroom Product Selection & Content Distribution, Specially for Headphone, Speaker, Soundbar Retail Demonstration;

* Car Audio Products Specility Store Presentation System;

* Museum exhibits and displays
* Music and sound for amusement equipment
* Special sound effects for theme park attractions
* PA announcements of fixed messages at public places
* Safety instructions/feedback for industrial/vending equipment

Headphone demo station Ordering Options:

* Audio Board (PCBA only ) For Seasoned Buyers Who Have Basic Knowledge In Electronics Installation & Testing;

* Audio Player Boxed Version;

* AC Adapter;

* Triggering Accessories: Push Buttons (16mm or 19mm diameter, LED illuminiated or Not, Blue /White LED lighting, With or Without Action Signs ); Lift Sensor ( For micro user activation detection )….etc

* Line-in Cable

* LED Retail Lighting: Lighting Strips, Or Lighting Guided Plate;

* Power Distributor 12V/ 5V in USB or Molex Connector;

To review the full range of our retail audio display solutions ?

Here is a short video about it:

Not Able To Find The Matching Solution To Your Project ?

Check the following table with audio function matrix:

Audio Demonstration Functions Matrix>>



Qty Of Demo Item

( (headphone, speaker, sound bars)

1-3 pcs up to 8 pcs up to 8pcs up to 8pcs
Audio / Video (require Screen ) Audio only Video Video Video
1080P/4K No TV required 1080P TV Required No TV Required, 1080P 4k TV Required
Form Factor: All in one /  modular Board or Box only Board or Box only All in one (7″-55″) Board or Box only
Model / Solution A10HS4 , MP40 MP10S  MP10S3 , Mutli-tablet Kiosk , tablet audio POP , Multiroom Speakers , A156H MP40S8



Understanding the solution mother board options:

Retail Audio Controller Mother board 1507

Specification
  • Audio-Video version: from 7-inch to 31.5 inch;
  • Output Power per Channel:
    35mW for 16ohm Headphone

    25mw for 32ohm Headphone
  • Audio DAC:24-Bit, 48KHz;
  • Frequency Response: 20 – 20KHz
  • THD+N:0.03%( tested by Audio Precision AP2700)
  • SNR:100dB
  • Crosstalk:80dB
  • File formats: MP3 to 320kbps or WAV, FLAC
  • File storage media: SD/SDHC card, format: FAT 32
  • Optional Selector Push Buttons For Product Selection: up to 6
  • Support Content Authoring With Tech-Free Play Control Script & Syntax
  • Available in Metallic Set-top-box, Open Frame Display or Circuit Board Only
