Digital Shelf Edge Display Strip is the latest LCD innovation for the retail industry. Brands and retailers could display compelling video ads across a number of split screens to generate massive attraction, just like a 1M wide theatre directly on the shelf in store.
Unlike other expensive solutions featuring USB-TTL or HDMI Splitter or network cable to deliver videos into multi-screen strip, our 2nd generation digital shelf-edge display lines take advantage of readily available open frame shelf edge players (from 4.3 inch, 7 inch, 10.1 inch, 13.3 inch To 18.5 inch) to integrate directly onto shelf-edge. Split videos would be displayed at the command of synchronizer board. Tech-free operation make it a perfect choice for every budget and space limited marketer to generate great ROI.
Now Networked Shelf Video Strip Available For:
Smart Shelf With Retail ioT Integration
Features
This Digital Shelf Solution is for the scenario that is space limited but still need massive attraction:
Suitable Deployments / Markets:
Supermarkets, Pharmacies, Service Stations, Banks, Hardware Stores, Clothing Stores, Electronic
As shown above, split videos will be stored in SD card/USB drive on each modular media players, the synchronizer controller board will restore the loop every X minutes to ensure the lowest timing discrepancy. Optional motion sensor, push button and other video triggers can be integrated into synchronizer controller board via GPIO.
WiFi Networked Version: Smart Shelf With Retail ioT Integration
Networked Shelf Video Strip: Android Based Central Controller To Manage Up To 64×64 Different Display Areas
This cloud server-based multi-screen display strip is much more flexible for instant content update via CMS, and no need for deliberate video splitting. Based on HDMI to RGB interface, with one single Android based media player decoder board, the video splitter board will send the cropped video to each screen module, it can be video or image, both are displayed simultaneously. Thanks to Android open source platform for hardware driver & applications, user activated video triggering such as NFC, barcode reader, RFID reader can be implemented and all user interactivity logging can be saved for further data analysis. Of course, the price is much higher than the stand-alone version.
Configurations:
Controller Media Player: 4K UHD Android Based ( MP40 ) or Linux Based ( Budget & Custom );
HDMI Splitter;
Monitor Board With HDMI-RGB Interface;
Besides Retail Advertising, Our Quality Screens Are Needed By Every Other Sector As:
> Office /Corporate Sign;
> Schools /Colleges Info Board;
> Universities Notice Board;
> Hotel / Restaurant / Conference Signage;
> Leisure Centres Message Display;
> Museums Signage Display, Navigation Screen Or Interactive Tour Guide;
> Library Entrance Information Displays;
> Healthcare Signage In Hospital & Surgery Waiting Areas;
> Digital Event Display in Churches;
Or Any Other Equipment Maker Who Needs A Custom User Display Via HDMI / VGA / Composite / DVI / DP / LVDS /eDP /mipi
Specification

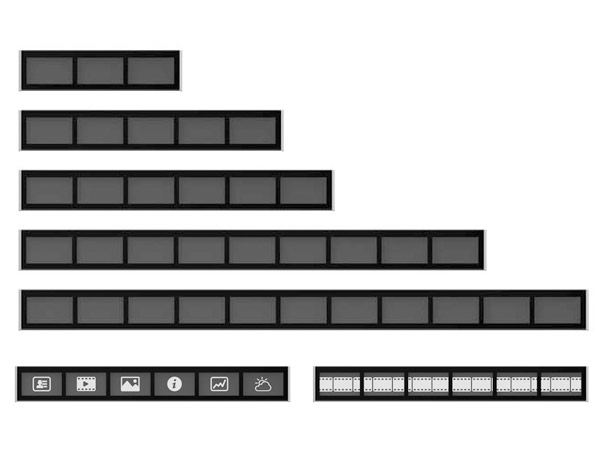

Current Models (Open Frame Version for Integration and Rear Mounting Case Version, Framed Version, Networked, and Non-Networked)
Control playback sequence to ensure the lowest timing discrepancy in every X minutes
Commercial Solution:
Dia-cust made alluminium shell to fix display cells For Narrow Bezel Between Screens, no extra user interface unprotected ( e.g. minimum 7mm for 4.3-inch cell );
Transparent Screen Protection;
Built-in Playlist Switch To Change Up To 100 Playlists /Ads Preloaded
Content Update:
USB Auto Copy Into Each Module
Gap Between LCD Modules Could Be Limited Within 7mm
Downloads & Documentation
Specification: Digital Shelf Edge Multiscreen Display Strip
AOK Displays give us peace of mind as a great technology partner for the most challenging project with A brand clients. They always challenge status -quo and think from client’s perspective, and they strive to achieve the vital, small difference that count as small as the gap between No. 1 runner and No. 2 runner during the horse racing.
Guy Siegel, General Manager, Outfrom Shenhen
For Some People , I’m sure AOK is just a side show in their bussiness, but for us , It’s a critical part of our success. We have increased revenue 30% since working with AOK.
Dirk Sliedrecht, Director, ProDVX Europe / Asia
AOK Displays build retail display solution for us with every user element modular preset, every project they response rapidly, even if we ask for a change in the last minute …. amazing partner.
Ted Rosenbaum, CEO, Revel Digital
They analyse and understand our requirements for sound bar & headphone display like a doctor, many intractable issue were addressed & recognized before project implementation.
Alain Raskin, General Manager, PES Systems
Safety
Lowest Product Failure Rate, Product Life-circle Support
Efficiency
Tailor-made Solution To Increase productivity and decrease costs
Peace of mind
Modular-base solution with interplay of hardware & software
We’re not just a company that sells products—we’re a company that solves problems. We’ll sit down with you and figure out what you need, then we’ll build it for you. Our team of designers, engineers and technicians will work with you to create custom-made solutions that are tailored to your needs.
Thus, the starting point of our job is to recognize the actual project target, helping you, our customers address the multiple aspects of the whole project, from installation, user experience to maintenance. With our solid electronics experience having seen or overcome 90% of retail advertising challenges, we are able to let our customer understand A‐Z of their project before making decision.
